10W To 200W LED Tunnel Lights Construction Site Flood Lights Reflector IK07

Minimum Order Quantity : 100 PCS Price : Negotiated
Packaging Details : 20pcs/carton or customised Delivery Time : 8-15 working days
Payment Terms : T/T, Western Union, MoneyGram Supply Ability : 20000pcs/month
Place of Origin: Shen Zhen, China Brand Name: SUNRISE
Certification: CE, RoHS Model Number: SU-MY20

Detail Information

Product Name: Flood Light Reflector Color:: 3000K, 4500K, 5500K, 6500K
Body Color: Black, White Beam Angle: 60°, 90°
Glass Type: Reeded Tempered Glass Driver Mode: Constant Current Driver
Light Source: SMD 2835 Shock Protection: IK07
High Light:

10W 200W IK07 flood lights reflector

,

IK07 10W 200W flood lights reflector

,

10W 200W flood lights reflector IK07

Product Description

Construction Site Flood Light Reflector 10W To 200W IP65 Die Casting Aluminum



Quick Details of Flood Light Reflector:

► Product type: Tunnel Flood Light.

► Product Model: SU-MY20.

► Real power: 20W.

► Lumen flux:  2000-2200lm.

► Dimension: L155*W140*H35mm.

► Work input voltage: AC85-265V, 50/60Hz.

► IP protection: IP65 waterproof.

► Beam angle: 60 / 90 degree.

► Driver: built-in constant-current isolated driver.

► Body material: Aluminum.

► Cover material: 4mm tempered glass.

► LED junction temperature less than 50 degree.
► High light transmission up to 95%.
► Easy installation and maintenance, quality guaranteed.
► Waterproof Isolated brand driver, waterproof silicon loop and waterproof glue sealed for multi-layer waterproof protection.
► Brand drivers are customised.
► Smart modes are available such as 0-10V, Dali dimming, PIR motion sensor, remote sensor, photocell/radar sensor, DMX512, RGBW etc.



Descriptions of Flood Light Reflector:

   The 20W LED floodlight is a waterproof lamp with classicial and nice quality. It adopts super bright smd 2835 as lamp's light source with super bright, low light decay and long lifespan. In order to its practicability and beauty, we use streaking radiator and use clips to fix tightly after sealing by glue. For installation, the bracket is very import, so the supportor design is strong, and big enough to accept the weight. This lamp takes isolated constant current driver, PF>0.9, high work efficiency. Since these lots of features, the lamp is widely used for project, construction site, wharf, tower, sculpture, landscape,



Specifications of Flood Light Reflector:

Product Name Flood Light Reflector
SKU SU-MY20 SU-MY30 SU-MY50
Work Voltage AC85-265V, 50/60
Rated Power 20W 30W 50W
Finished Lumen 2000-2200lm 3000-3300lm 5000-5500lm
Dimension (mm) L155*W140*H35 L177*W160*H35 L254*W197*H40
Lamp Type SMD 2835 chips 130lm/W
Color 2700K, 3000K, 4500K, 5500K, 6500K
CRI >0.8
PF >0.9
Material Die-casting Aluminum
Surge Protection 4KV
Shock-proof Protection IK07
IP Protection IP65 waterproof
Driver Mode Constant current, isolated driver
Beam Angle 60°, 90°
Body Color White , Black
Cable 3*0.75m²  - 100cm
Work Temperature -40 ~ 50°C
Life Span 50,000H
Packing 50 PCS/ctn 30 PCS/ctn 20 PCS/ctn

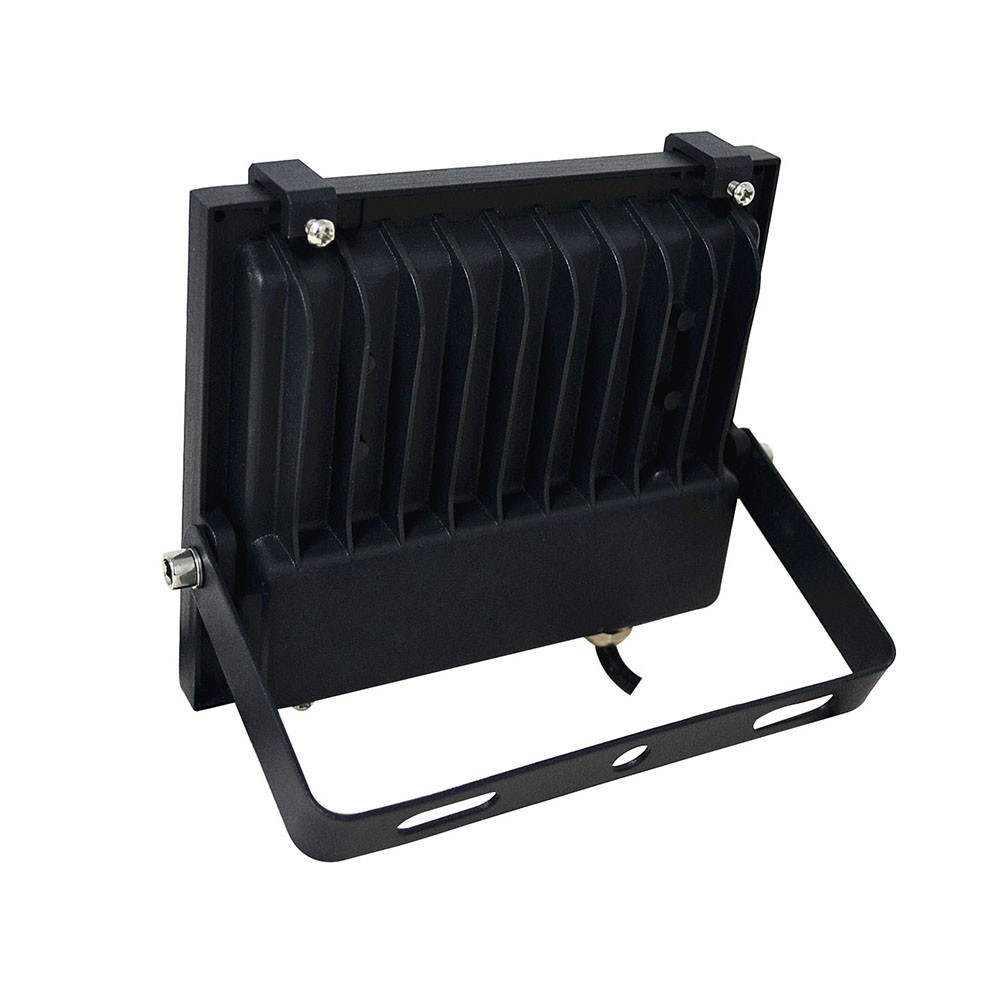

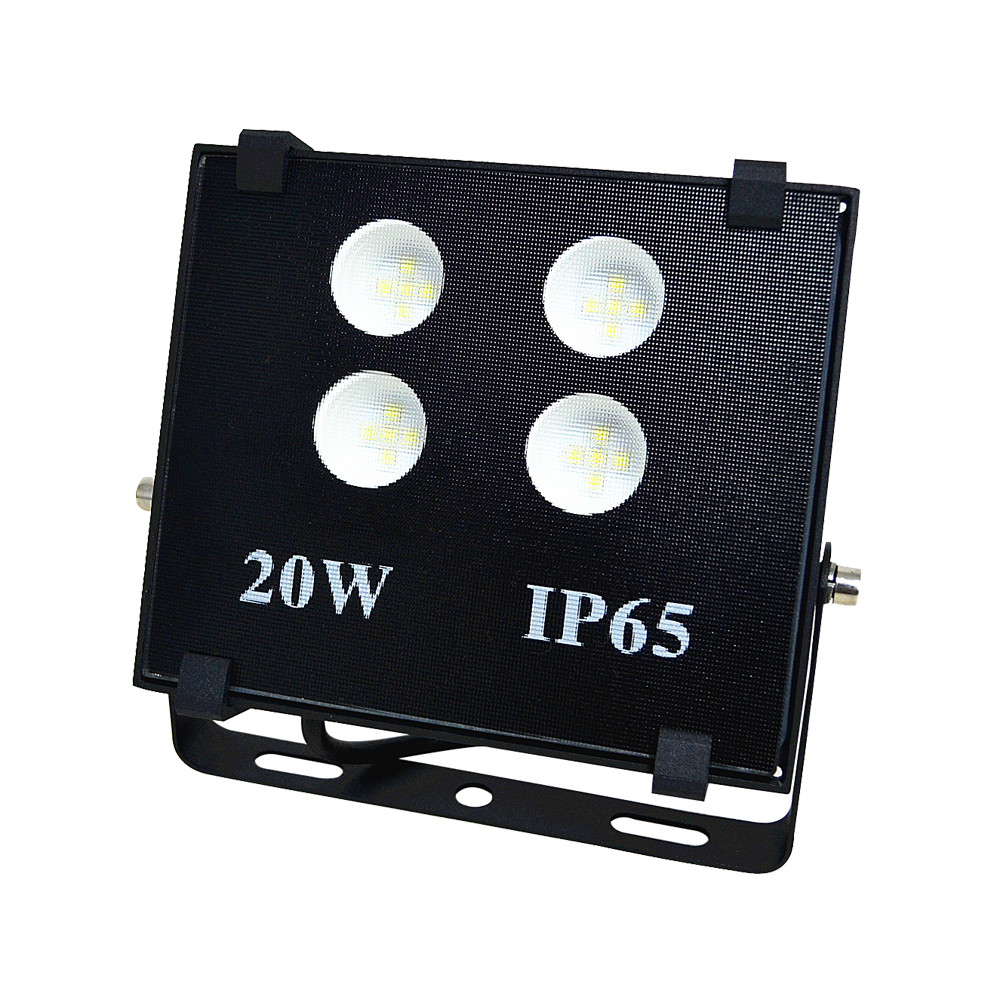

Product Show of Flood Light Reflector:

10W To 200W LED Tunnel Lights Construction Site Flood Lights Reflector IK07 0

10W To 200W LED Tunnel Lights Construction Site Flood Lights Reflector IK07 110W To 200W LED Tunnel Lights Construction Site Flood Lights Reflector IK07 210W To 200W LED Tunnel Lights Construction Site Flood Lights Reflector IK07 3

10W To 200W LED Tunnel Lights Construction Site Flood Lights Reflector IK07 4



Frequent Questions of Flood Light Reflector:

1. What is the MOQ?
SUNRISE: The MOQ is 100pieces. Sample is available and we can make a deal via Alibaba. Mixed samples order is welcome.

2. Does the flood LED lights include any driver inside?
SUNRISE: This model includes brand driver inside. Other brands can be choosed if needed.

3. Is there any other body color for this flood LED lights?
SUNRISE: It can have white or black body.

4. Can this flood LED lights be dimmable?
SUNRISE: Yes, it can make dimmable, and we also have other dimmable types for your reference.

5. How can you guarantee quality?
SUNRISE: All raw materials must be checked before stocking and finished products must have been tested and aged. Finally packed. If unfornately any fault happend, we will replace. The warranty is 2 years.

6. How to ship the goods?
SUNRISE: We usually ship by sea, by air or by express such as DHL, UPS, FedEx, TNT or special line. Your forwarder is also welcome. Trying to get the lowest cost for you.

7. What is the leadtime?
SUNRISE: It usually takes 10-15 days <500pcs. >500pcs the leadtime is 18-25 days.

8. Can I have my brand or logo on the products?
SUNRISE: Yes, we have professional designing team to finish your requests. Welcome to OEM, ODM.
