SMD3030 Asymmetric High Power LED Flood Lights 200 Watt Black Aluminum Body

Certification
China Shenzhen Sunrise Lighting Co.,Ltd. certification
China Shenzhen Sunrise Lighting Co.,Ltd. certification
I'm Online Chat Now

SMD3030 Asymmetric High Power LED Flood Lights 200 Watt Black Aluminum Body

SMD3030 Asymmetric High Power LED Flood Lights 200 Watt Black Aluminum Body
SMD3030 Asymmetric High Power LED Flood Lights 200 Watt Black Aluminum Body SMD3030 Asymmetric High Power LED Flood Lights 200 Watt Black Aluminum Body SMD3030 Asymmetric High Power LED Flood Lights 200 Watt Black Aluminum Body

Large Image :  SMD3030 Asymmetric High Power LED Flood Lights 200 Watt Black Aluminum Body

Product Details:
Place of Origin: Shen Zhen, China
Brand Name: SUNRISE
Certification: CE, RoHS
Model Number: SU-WS200
Payment & Shipping Terms:
Minimum Order Quantity: 100 PCS
Price: Negotiated
Packaging Details: carton or customised
Delivery Time: 10-15 days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 10000pcs/ctn

SMD3030 Asymmetric High Power LED Flood Lights 200 Watt Black Aluminum Body

Description
Name: 200 Watt LED Flood Light Luminous Flux: 130lm Each Watts
Support Dimmable: Yes Support Sensor: Yes
Light Type: SMD3030 Osram Chips Installation: Surface, Ceiling, Mount, Ground
Feature: Corrision-proof, Pressure-proof Material: Aluminum
High Light:

SMD3030 High Power LED Flood Lights

,

SMD3030 high powered flood lights

,

asymmetric led flood light 200 Watt

Symmetric 200 Watt LED Flood Light Black Aluminum Body Industrial Lighting

Quick details of 200 Watt LED Flood Light Black:
1. Product type: LED Flood Light.

2. Lunious flux: 26000 Lumens.
2. LED quantity: 240PCS LED chips.
3. Input work voltage: AC85-265V.

4. Frequency: 50/60Hz.

5. Surge protection: 4KV.
6. Optional colors: normal 3000K, 4500K, 6500K, 7000K+ and customised color.
7. Optional wattages: 30w, 50w, 100w, 150w and 200w.
8. Product size: L344*W301*H43mm.

9. CRI: >80Ra.
10. Shock-proof class: IK07.
11. Water-proof class: IP66.
12. Material: die-casting aluminum + PC cover.
13. Optional narrow beam angle 60 degree and wide beam angle 120 degree.
14. Various smart serier: 0-10V dimming, Dali dimmming, pir motion sensor, radar sensor, photocel sensor, DMX512 and remote control.

15. Able to choose various brand drivers.

Descriptions of 200 Watts Floodlights:

► 240 LEDs 26000 Lumens
The built-in upgraded 240 pcs super bright LED smd chips can produce 26000lm high output brightness, which is much more brighter than other light sources.
Brightness Upgraded
Powered by high-quality 3030 LED chips, increased the number of light beads, better brightness and large illumination.
Thickened Aluminum
Superior & thickened ADC12# diecasting aluminum with corrosion-proof, shock-proof, dust-proof and weather-proof, faster heat sinking to keep long lifespan.
Constant Current Driver
High quality constant current driver with high work efficiency, PF>0.9, famous brand drivers customised.
Waterproof Upgrated
Rain-proof & water-proof protection IP66 upgraded, suitable for wet applications.
High Quality Glass Bead Cover
High-quality optical bead PC cover with 60 and 120 degree, no yellow, and high light transmission up to >95%.


Product Parameters of
200 Watts Floodlights:

Product Name 100 150 200 Watts Floodlights
SKU SU-WS100 SU-WS150 SU-WS200
Input Voltage AC85-265V, 50/60Hz
Rated Power 100 watts 150 watts 200 watts
Luminous Flux 13000lm 19500lm 26000lm
Light Source Osram SMD3030 led chip
Light Efficiency 130lm/W
CCT 2700k, 3000k, 4500k, 5000k, 6500k
Product Size (mm) L284*W241*H40 L314*W272*H43 L344*W301*H43
Driver Constant Current Isolated Driver
Body Material Diecasting aluminum
Cover Material Tempered Glass
CRI >80
PF >0.9
Housing Color Black, White
Surge Protection 4KV
Beam Angle 60° / 120°
Class Protection IK07, IP66
Working Temperature: -30 ~ 50 Deg.
Life Span 50,000H
Warranty 3 Years
Application Sports stadiums, road, garden, street, wall lighting

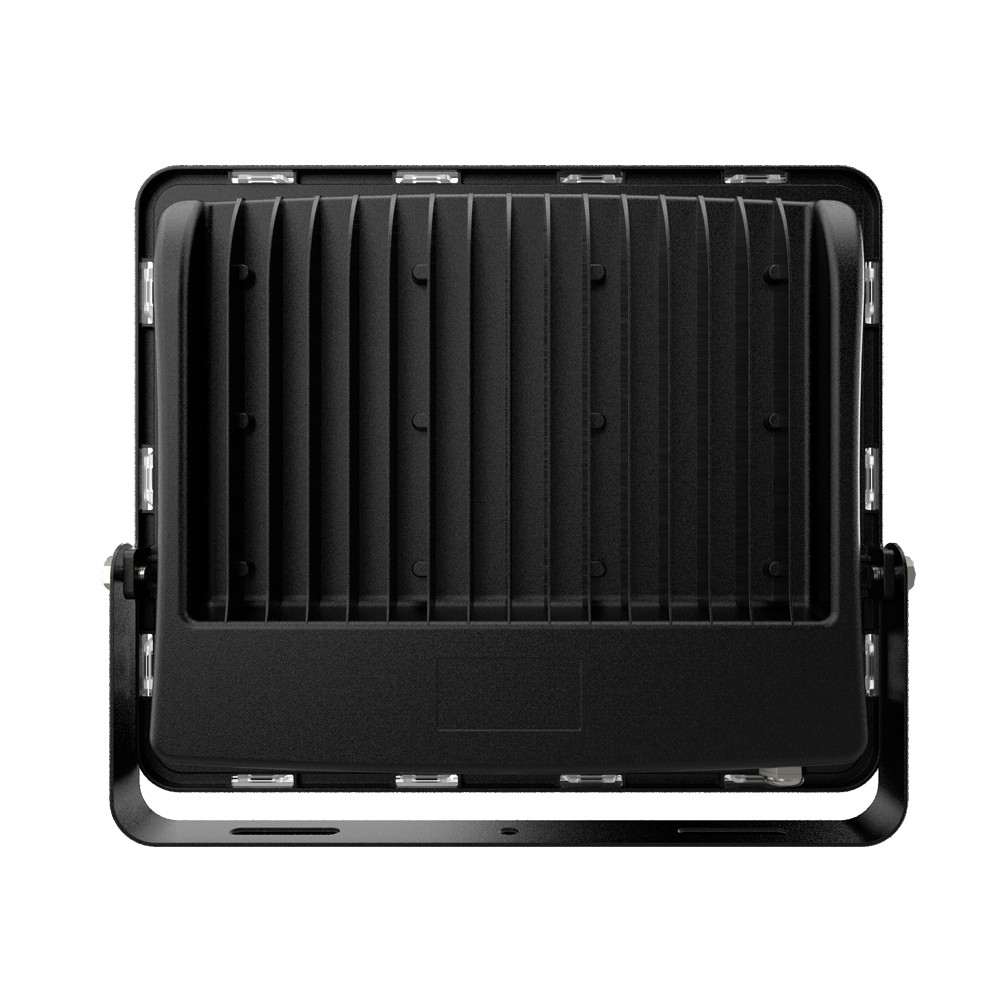

Product Show of
200 Watts Floodlights:
SMD3030 Asymmetric High Power LED Flood Lights 200 Watt Black Aluminum Body 0

Product figure of
200 Watts Floodlights:

1. Optical PC lens 60 degree against yellowing.
2. Waterproof silicon ring.
3. Nano-plastic reflector against the high temperature and UV, long use and never yellowing.
4. SMD3030 Osram LED high light efficiency and brighter.
5. Aluminum PCB with high thermal conductivity, and faster heat sinking.
6. High-quality and famous brand driver: Meanwell. Sosen etc.
7. ADC12 dle-casting aluminum radiator, efficiency up to 96W/M.K.
8. Strong & thickened bracket and easy installation.
SMD3030 Asymmetric High Power LED Flood Lights 200 Watt Black Aluminum Body 1

Dimensions of
200 Watts Floodlights:

SMD3030 Asymmetric High Power LED Flood Lights 200 Watt Black Aluminum Body 2

SMD3030 Asymmetric High Power LED Flood Lights 200 Watt Black Aluminum Body 3


Optical Lens 60° and 120°of 200 Watts Floodlights:
SMD3030 Asymmetric High Power LED Flood Lights 200 Watt Black Aluminum Body 4
SMD3030 Asymmetric High Power LED Flood Lights 200 Watt Black Aluminum Body 5


Installations of
200 Watts Floodlights​:
SMD3030 Asymmetric High Power LED Flood Lights 200 Watt Black Aluminum Body 6
Frequent Questions of
200 Watts Floodlights:

1. Can I have 1pc sample to test firstly?
Re: Yes, 1pc sample can be offered, and mixed samples are welcome.


2. Can you make my logo on the box or the product?
Re: Yes, surely no problem. Please tell us your logo and idea, and we will give you a solution.


3. Can you do WHITE body for this model?
Re: Yes, we can. This model has White and Black body for your options.


4. Do you have the 200 watts floodlights with wide beam angle 110°?
Re: Yes, this same model can have 60° and 120°.


5. Can the 200 watts floodlights be dimmable?
Re: Yes, the model can make dimmable such as 0-10V, Dali dimming etc. Please contact us for details!

6. Can you do colorful box?
Re: Yes, certainly. We just want your draft to do what you hoped.

7. Does this 200 Watts floodlights include any driver?
Re: Yes, absolutely. This lamp includes constant-current driver with warranty 3 years, and driver available.

8. How can you guarantee the quality?
Re: All raw materials must be checked before stocking and the finished products must have been tested and aged. Finally packed. If unfornately any fault happend, we will replace.
