Product Description
3 Years Warranty SMD 200 Watts Floodlights Spot Lighting Bult-in Driver
Quick details of 200 Watts Floodlights:
1. Product type: SMD 200 watts Floodlights.
2. Lunious flux: 26000 Lumens.
2. LED quantity: 240PCS super bright LED chips.
3. Input work voltage: AC85-265V, 50/60Hz.
4. Surge protection: 4KV.
5. Support customisation.
6. Optional color temperature: normal 3000K, 4500K, 6500K, 7000K+ and customised color.
7. Available wattages: 30w, 50w, 100w, 150w and 200w.
8. Product size: L344*W301*H43mm.
9. Shock-proof class: IK07.
10. Water-proof class: IP66.
11. Material: die casting aluminum and optical PC lens with 60 Deg. and 120 Deg. optional.
12. Optional narrow beam angle 60 degree and wide beam angle 120 degree.
13. Various smart serier: 0-10V dimming, Dali dimmming, pir motion sensor, radar sensor, photocel sensor, DMX512 and remote control.
14. Able to choose various brand drivers.
Descriptions of 200 Watts Floodlights:
► 240 LEDs 26000 Lumens
The built-in upgraded 240 pcs super bright LED smd chips can produce 26000lm high output brightness, which is much more brighter than other light sources.
► Brightness Upgraded
Powered by high-quality 3030 LED chips, increased the number of light beads, better brightness and large illumination.
► Thickened Aluminum
Superior & thickened ADC12# diecasting aluminum with corrosion-proof, shock-proof, dust-proof and weather-proof, faster heat sinking to keep long lifespan.
► Constant Current Driver
High quality constant current driver with high work efficiency, PF>0.9, famous brand drivers customised.
► Waterproof Upgrated
Rain-proof & water-proof protection IP66 upgraded, suitable for wet applications.
► High Quality Glass Bead Cover
High-quality optical bead PC cover with 60 and 120 degree, no yellow, and high light transmission up to >95%.
Product Parameters of 200 Watts Floodlights:
| Product Name |
100 150 200 Watts Floodlights |
| SKU |
SU-WS100 |
SU-WS150 |
SU-WS200 |
| Input Voltage |
AC85-265V, 50/60Hz |
| Rated Power |
100 watts |
150 watts |
200 watts |
| Luminous Flux |
13000lm |
19500lm |
26000lm |
| Light Source |
SMD3030 Lumileds led chip |
| Light Efficiency |
130lm/W |
| CCT |
2700k, 3000k, 4500k, 5000k, 6500k |
| Product Size (mm) |
L284*W241*H40 |
L314*W272*H43 |
L344*W301*H43 |
| Driver |
Constant Current Isolated Driver |
| Body Material |
Diecasting aluminum |
| Cover Material |
Tempered Glass |
| CRI |
>80 |
| PF |
>0.9 |
| Housing Color |
Black, White |
| Surge Protection |
4KV |
| Beam Angle |
60° / 120° |
| Class Protection |
IK07, IP66 |
| Working Temperature: |
-30 ~ 50 Deg. |
| Life Span |
50,000H |
| Warranty |
3 Years |
| Application |
Sports stadiums, road, garden, street, wall lighting |

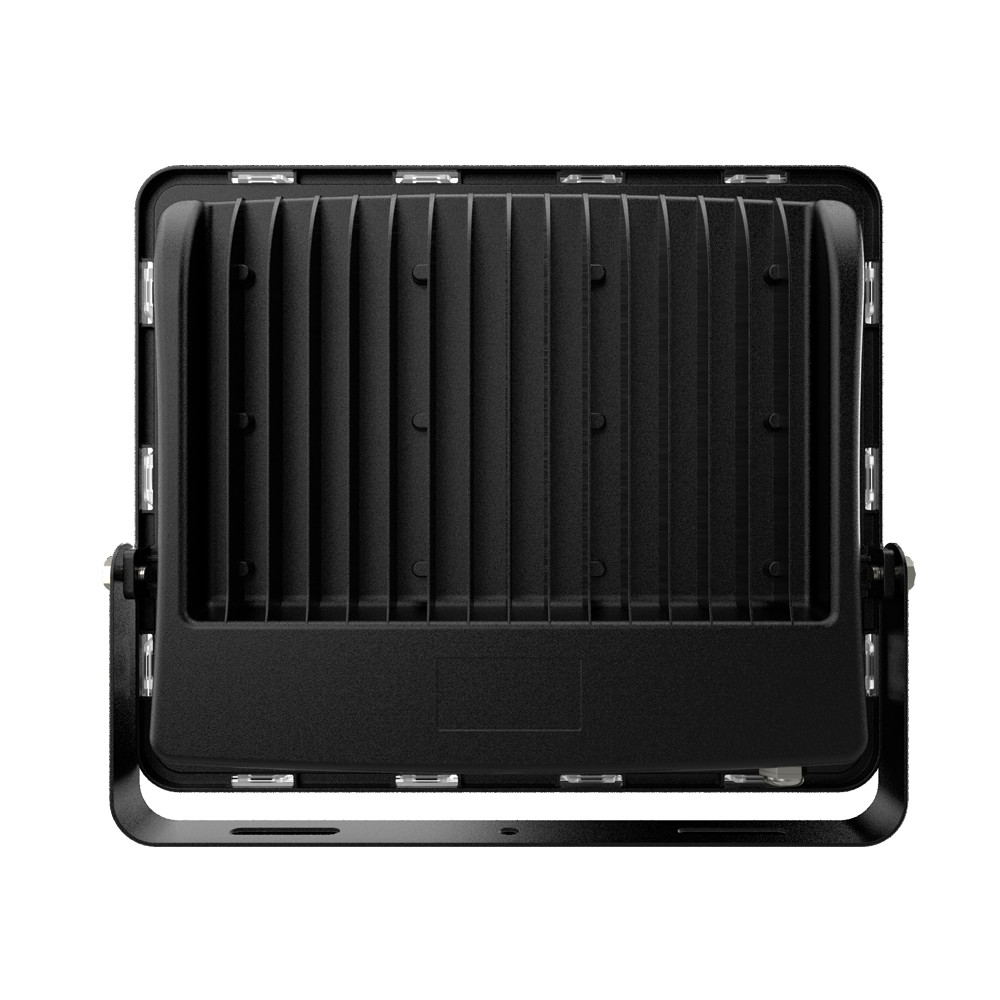

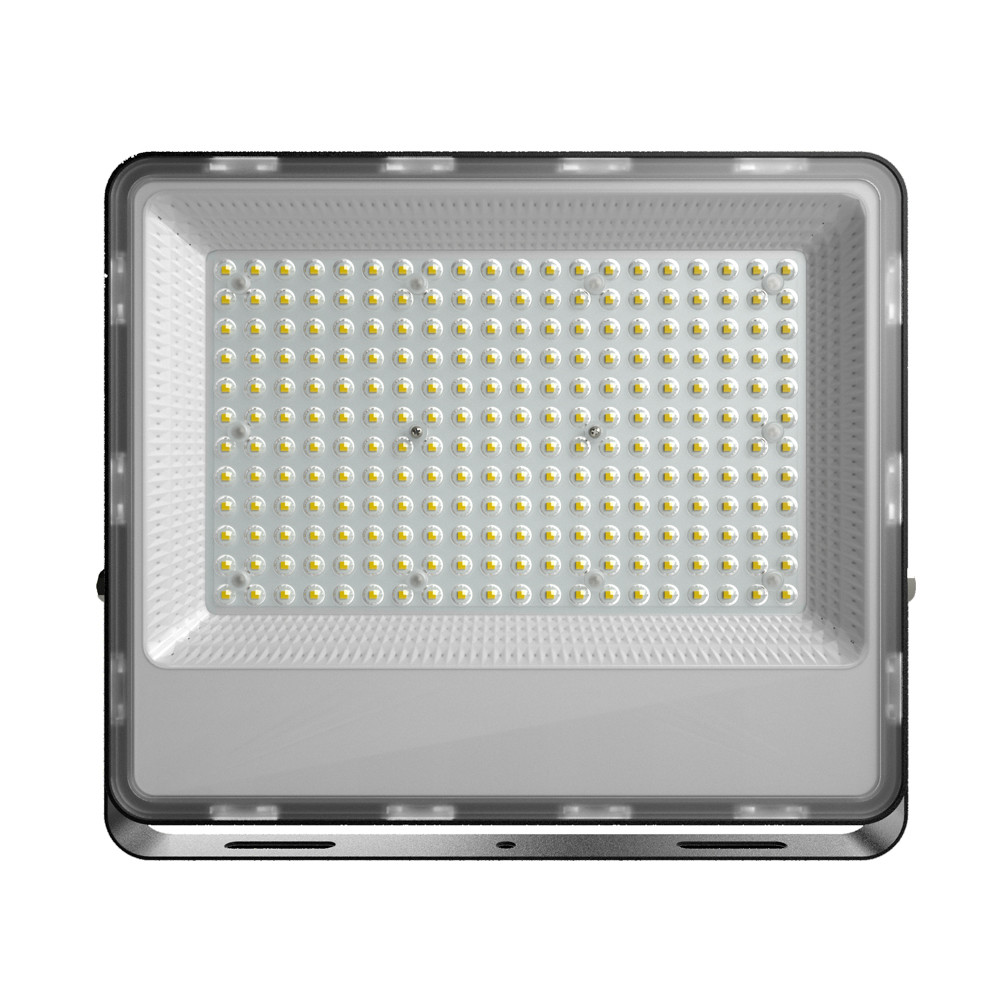

Product Show of 200 Watts Floodlights:
Product figure of 200 Watts Floodlights:
1. Optical PC lens 60 degree against yellowing.
2. Waterproof silicon ring.
3. Nano-plastic reflector against the high temperature and UV, long use and never yellowing.
4. SMD3030 Lumileds LED high light officiency and more brighter.
5. Aluminum PCB with high thermal conductivity, and faster heat running.
6. High-quality and famous brand driver: Meanwell.Sosen etc.
7. ADC12 dle-casting aluminum radiator, effidency up to 96W/M.K.
8. Strong & thickend bracket and easy installation.
Dimensions of 200 Watts Floodlights:
Optical Lens 60 and 120 degree available of 200 Watts Floodlights:

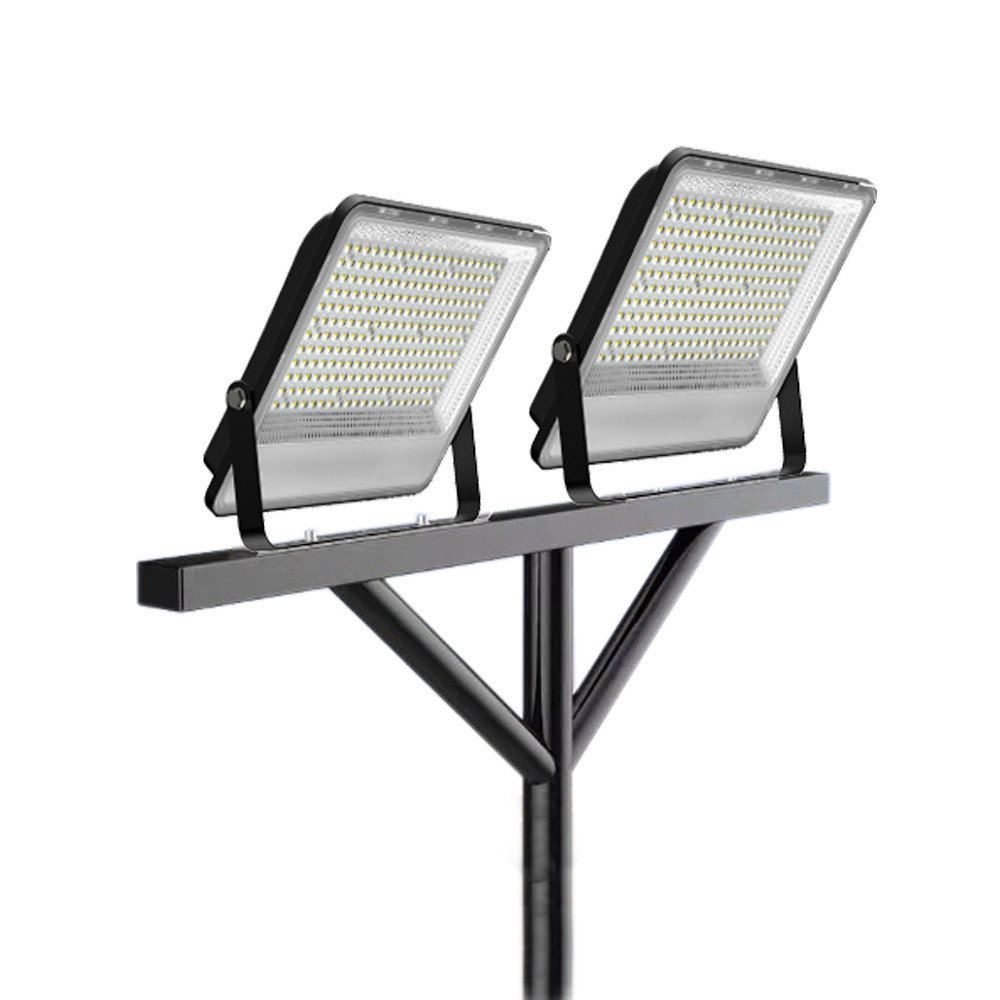

Installations of 200 Watts Floodlights:
Frequent Questions of 200 Watts Floodlights:
1. Can I have 1pc sample to test firstly?
Re: Yes, 1pc sample can be offered, and mixed samples are welcome.
2. Can you make mygo on the box or the product?
Re: Yes, surely no problem. Please tell us your logo and idea, and we will give you a solution.
3. Can you do WHITE body for this model?
Re: Yes, we can. This model has White and Black body for your options.
4. Do you have the 200 watts floodlights with wide beam angle 110°?
Re: Yes, this same model can have 60° and 120°.
5. Can the200 watts floodlights be dimmable?
Re: Yes, the model can make dimmable such as 0-10V, Dali dimming etc. Please contact us for details!
6. Can you do colorful box?
Re: Yes, certainly. We just want your draft to do what you hoped.
7. Does this LED reflector floodlights include any driver?
Re: Yes, absolutely. This lamp includes constant-current isolated driver with warranty 3 years, and driver available.
8. How can you guarantee the quality?
Re: All raw materials must be checked before stocking and the finished products must have been tested and aged. Finally packed. If unfornately any fault happend, we will replace.
