Street High Lumen Industrial LED Floodlights 120deg Beam Angle AC85V To 265V

Certification
China Shenzhen Sunrise Lighting Co.,Ltd. certification
China Shenzhen Sunrise Lighting Co.,Ltd. certification
I'm Online Chat Now

Street High Lumen Industrial LED Floodlights 120deg Beam Angle AC85V To 265V

Street High Lumen Industrial LED Floodlights 120deg Beam Angle AC85V To 265V
Street High Lumen Industrial LED Floodlights 120deg Beam Angle AC85V To 265V Street High Lumen Industrial LED Floodlights 120deg Beam Angle AC85V To 265V

Large Image :  Street High Lumen Industrial LED Floodlights 120deg Beam Angle AC85V To 265V

Product Details:
Place of Origin: Shen Zhen, China
Brand Name: SUNRISE
Model Number: SU-WS200
Payment & Shipping Terms:
Minimum Order Quantity: 100 PCS
Price: Negotiated
Packaging Details: carton or customised
Delivery Time: 8-15 days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 20000pcs/ctn

Street High Lumen Industrial LED Floodlights 120deg Beam Angle AC85V To 265V

Description
Name: Reflector LED Flood Light Light Source: SMD3030 Lumiled Chips
Installation: Surface, Ceiling, Mounting, Ground Dimmable Mode: 0-10V, DALI Dimming
Material: Die-casting Aluminum Light Efficiency: 130lm/W
CCT: 2700, 3000k, 4500k, 6500k Support Sensor: Yes
High Light:

120deg Industrial LED Floodlights

,

led street flood light AC85V

,

265V high lumen flood light

Customization 200W LED Reflector Flood Light Bulbs IP66 for Stadium Street

Quick details of LED Reflector Flood Light Bulbs:
1. Lumen index: 26000lm for 200 watts.
2. 240PCS super bright LED chips SMD3030 light source.
3. Input work voltage: AC85-265V.
4. Optional color temperature: normal 3000K, 4500K, 6500K, 7000K+ and customised color.
5. Available wattages: 30w, 50w, 100w, 150w and 200w.
6. Product size: L344*W301*H43mm.
7. Surge protection: 4KV.
8. Shock-proof class: IK07.
9. Water-proof class: IP66.
10. Material: die casting aluminum and optical PC lens with 60 Deg. and 120 Deg. optional.
11. Optional narrow beam angle 60 degree and wide beam angle 120 degree.
12. Various smart serier: 0-10V dimming, Dali dimmming, pir motion sensor, radar sensor, photocel sensor, DMX512 and remote control.

Descriptions of LED Reflector Flood Light Bulbs:

► 240 LEDs 26000 Lumens
The built-in upgraded 240 pcs super bright LED smd chips can produce 26000lm high output brightness, which is much more brighter than other light sources.
► Brightness Upgraded
Powered by high-quality 3030 LED chips, increased the number of light beads, better brightness and large illumination.
► Thickened Aluminum
Superior & thickened ADC12# diecasting aluminum with corrosion-proof, shock-proof, dust-proof and weather-proof, faster heat sinking to keep long lifespan.
► Constant Current Driver
High quality constant current driver with high work efficiency, PF>0.9, famous brand drivers customised.
► Waterproof Upgrated
Rain-proof & water-proof protection IP66 upgraded, suitable for wet applications.
► High Quality Glass Bead Cover
High-quality optical bead PC cover with 60 and 120 degree, no yellow, and high light transmission up to >95%.


Product Parameters of
LED Reflector Flood Light Bulbs:

Product Name Reflector LED flood lights
SKU SU-WS100 SU-WS150 SU-WS200
Input Voltage AC85-265V, 50/60Hz
Rated Power 100 watts 150 watts 200 watts
Light Source SMD3030 Lumileds led chip
Light Efficiency 130lm/W
CCT 2700k, 3000k, 4500k, 5000k, 6500k
Product Size (mm) L284*W241*H40 L314*W272*H43 L344*W301*H43
Driver Constant Current Isolated Driver
Body Material Diecasting aluminum
Cover Material Tempered Glass
CRI >80
PF >0.9
Housing Color Black, White
Surge Protection 4KV
Beam Angle 60° / 120°
Class Protection IK07, IP66
Working Temperature: -30 ~ 50 Deg.
Life Span 50,000H
Warranty 3 Years
Application Sports Stadiums, road, garden, street, wall lighting

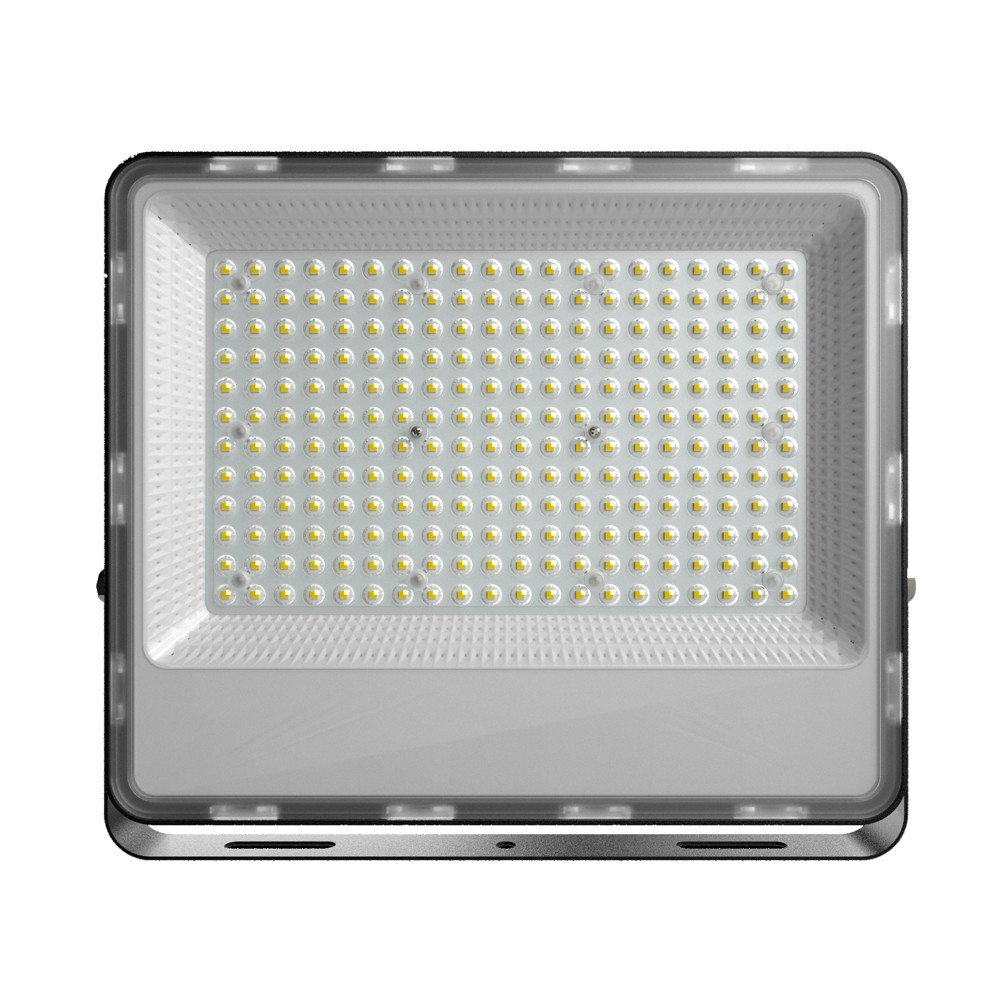

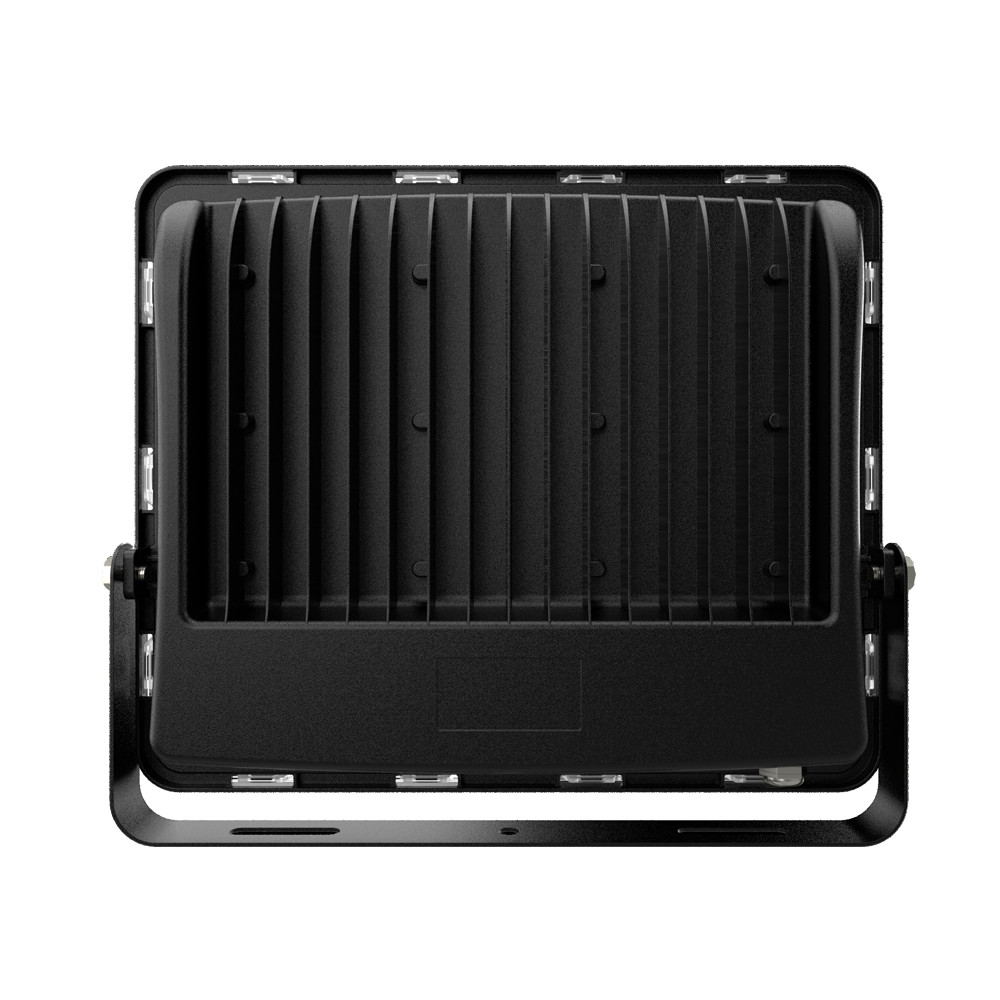

Product Show of
LED Reflector Flood Light Bulbs:
Street High Lumen Industrial LED Floodlights 120deg Beam Angle AC85V To 265V 0

Product figure of
LED Reflector Flood Light Bulbs:

1. Optical PC lens 60 degree against yellowing.
2. Waterproof silicon ring.
3. Nano-plastic reflector against the high temperature and UV.long use and never yellowing.
4. SMD3030 LED.high light officiency and lighting to further.
5. Aluminum base with high thermal conductivity,and faster heat running.
6. High-quality and famous brand driver:Meanwell.Sosen etc.
7. ADC12 dle-casting aluminum radiator,effidency up to 96W/M.K.
8. Strong support and strong installation.
Street High Lumen Industrial LED Floodlights 120deg Beam Angle AC85V To 265V 1

Dimensions of
LED Reflector Flood Light Bulbs:

Street High Lumen Industrial LED Floodlights 120deg Beam Angle AC85V To 265V 2

Street High Lumen Industrial LED Floodlights 120deg Beam Angle AC85V To 265V 3

Optical Lens 60 and 120 degree available of
LED Reflector Flood Light Bulbs:
Street High Lumen Industrial LED Floodlights 120deg Beam Angle AC85V To 265V 4
Street High Lumen Industrial LED Floodlights 120deg Beam Angle AC85V To 265V 5


Installations of
LED Reflector Flood Light Bulbs​:
Street High Lumen Industrial LED Floodlights 120deg Beam Angle AC85V To 265V 6
Frequent Questions of
LED Reflector Flood Light Bulbs:

1. Can I have 1pc sample to test firstly?
Re: Yes, 1pc sample can be offered, and mixed samples are welcome.


2. Do you have customised service like box, logo?
Re: Yes, we accept OEM or ODM. You please tell us your idea, and we will give you a solution.


3. Can you do WHITE body for this model?
Re: Yes, we can. This model has White and Black body for your options.


4. How long can I get my package?
Re: 1pc could be got about 1 week.


5. Can this led reflector floodlights dimmable?
Re: Yes, this model can make dimmable such as 0-10V, Dali dimming etc. Please contact us for details!

6. Can you do colorful box?
Re: Yes, certainly. We just want your draft to do what you hoped.

7. Does this LED reflector floodlights include any driver?
Re: Yes, absolutely. This lamp includes constant-current isolated driver with warranty 3 years, and Philips driver available.

8. How can you guarantee the quality?
Re: All raw materials must be checked before stocking and the finished products must have been tested and aged. Finally packed. If unfornately any fault happend, we will replace.
