Product Details:
|
| Name: | 150W LED Floodlights | Light Efficiency: | 19500lm/W |
|---|---|---|---|
| Usage: | Square, Street, Garden, Plaza | IP Rating: | IP66 Waterproof |
| Wattages: | 20w, 30w, 50w, 100w, 150w, 200w | Surge Protection: | 4KV |
| Beam Angle: | 60°, 120° | Material: | Aluminum + Tempered Glass |
| High Light: | SMD3030 150w led flood lights 19500lm,SMD3030 150w led flood light 19500lm,150w led flood lights 19500lm SMD3030 |
||
Corrosion Proof 150W LED Floodlights 19500lm SMD 3030 60 or 120 Deg
Quick Details of 150W LED Floodlights:
1. Luminous flux: 19500lm for 150W LED floodlights.
2. Input work voltage: AC85-265V, 50/60Hz.
3. 150W Size: L314xW272xH43mm
4. SMD super bright chips.
5. 2700K, 3000K, 4500K, 6500K.
6. 60 degree and 120 degree optional.
7. Protection: IP66 waterproof / IK08.
8. Surge protection: 4KV.
9. Optional function: 0-10V dimming, Dali dimming, PIR motion sensor, remote sensor, radar sensor, daylight sensor, DMX512 etc.
10. Driver mode: built-in contstant current isolated driver.
11. Ｗarranty: 3 years.
Descriptions of 150W LED Floodlights:
The 150W LED floodlight is a latest design in 2022 with classical appearance for outdoor project lighting. The shell is pure die-casting aluminum ADC12# with anti-pressure, high-strength, and anti-corrosion, and thick tempered glass cover. waterproof IP66. It adopts constant-current driver AC solution. It is widely used in hotel, home, gallery, stair, road, street, door, room, yard, parking, car warehouse etc.
We accept the customization for the different models!
Parameters of 150W LED Floodlights:
| Product Name | 150W LED Floodlights | ||
| Part No. | SU-WS100 | SU-WS150 | SU-WS200 |
| Input Voltage | AC85-265V, 50/60Hz | ||
| Rated Power | 100W | 150W | 200W |
| Luminous Flux | 13000lm | 19500lm | 26000lm |
| Light Source | SMD3030 LED chips | ||
| Light Efficiency | 130lm/W | ||
| CCT | 2700k, 3000k, 4500k, 5000k, 6500k | ||
| Product Size (mm) | L284xW241xH40 | L314xW272xH43 | L344xW301xH43 |
| Driver | Constant Current Isolated Driver | ||
| Body Material | ADC12 Aluminum | ||
| Cover Material | Tempered Glass | ||
| CRI | >80 | ||
| PF | >0.9 | ||
| Housing Color | Black, Grey | ||
| Surge Protection | 4KV | ||
| Beam Angle | 60° / 120° | ||
| Class Protection | IK08, IP66 | ||
| Working Temperature | -30 ~ 50 Deg. | ||
| Life Span | 50,000H | ||

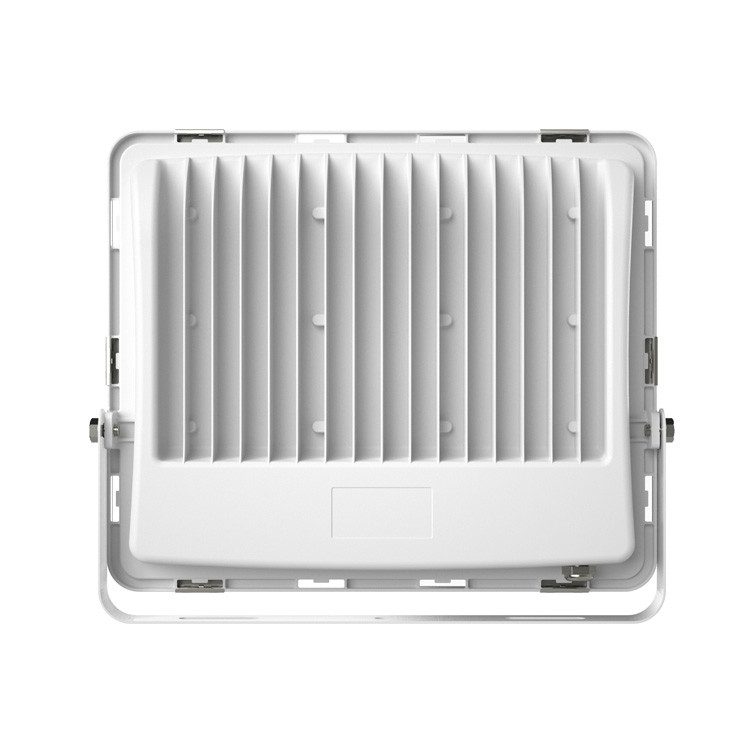

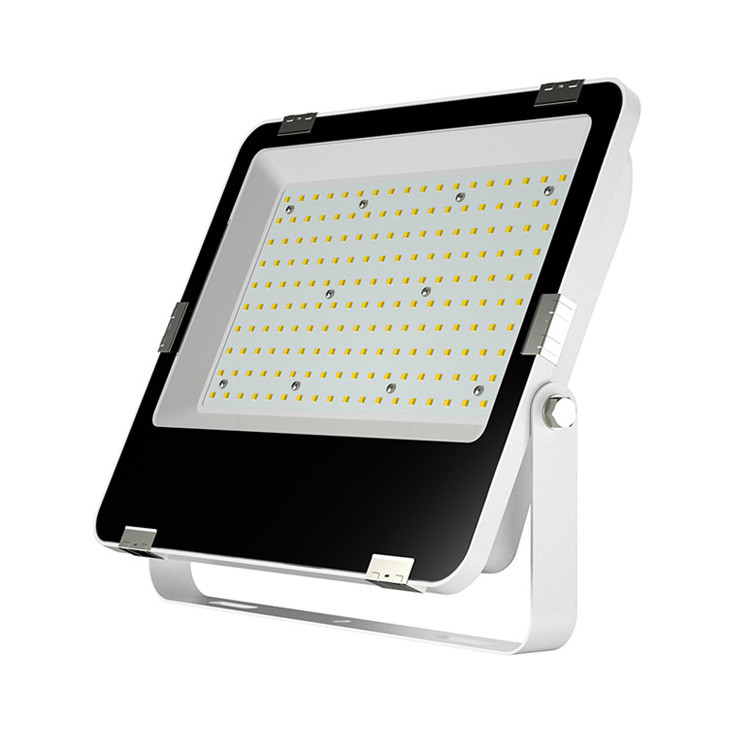

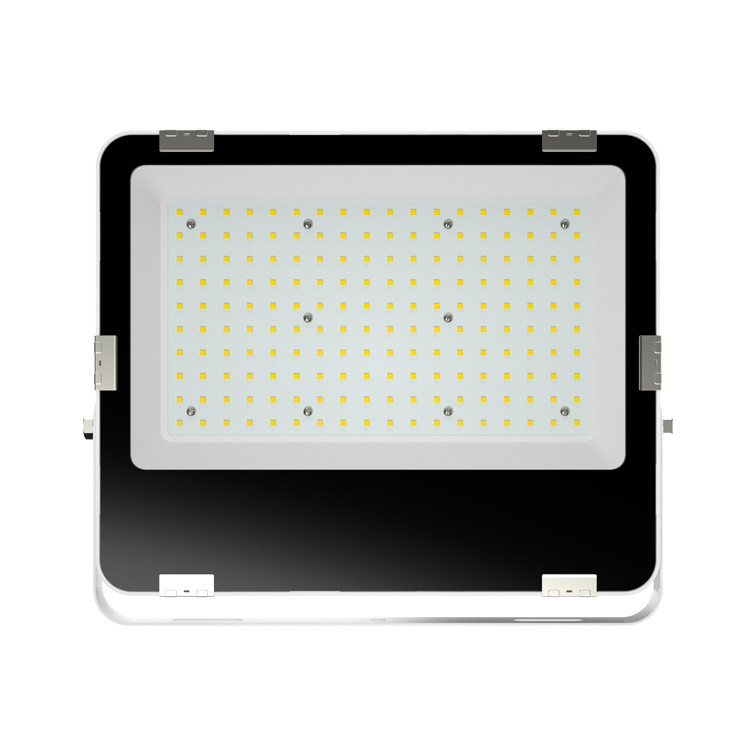

Product Shows of 150W LED Floodlights:
Dimensions of 150W LED Floodlights:
Product Figure of 150W LED Floodlights:
1.Tempered glass strudy and durable
2.Waterproof silicon ring.
3.Nano-plastic reflector against the high temperature and UV,long use and never yellowing.
4.SMD3030 LED,high light efficiency and lighting to further.
5.Aluminum base with high thermal conductivity,and faster heat running.
6.High-quality and famous brand driver:Meanwell,Sosen etc.
7.ADC12 die-casting aluminum radiator,efficiency up to 96W/M.K.
8.Strong support and strong installation.
Optical Lens 60 and 120 degree of 150W LED Floodlights:
Installations of 150W LED Floodlights:
Frequency Questions of 150W LED Floodlights:
1. Can I have 1pc sample to test firstly?
Re: Yes, 1pcs can be offered. Mixed samples order is welcome.
2. Do you have customised service?
Re: Yes, we accept OEM or ODM. You please tell us your idea, and we will give you a solution.
3. Can you do BLACK body for this model?
Re: Yes, we can. This model has White and Black body for your options.
4. How long can I get my package?
Re: 1pc could be got about 1 week.
5. Can this LED flood light 50w dimmable?
Re: Yes, this model can make dimmable. Please contact us for details!
6. Can you do colorful box?
Re: Yes, certainly. We just want your draft to do what you hoped.
7. Does this led floodlight 50w include any driver?
Re: This lamp includes constant-current isolated driver with warranty 3 years.
8. How can you guarantee the quality?
Re: All raw materials must be checked before stocking and the finished products must have been tested and aged. Finally packed. If unfornately any fault happend, we will replace. The warranty is 3 years.
