Product Details:
|
| Name: | Industrial LED Floodlight\high Powered Led Flood Lights | Light Efficiency: | 130lm/W |
|---|---|---|---|
| Surge Protection: | 6KV | Beam Angle: | 120° |
| IP Rating: | IP66 Waterproof | Material: | Aluminum |
| Color: | 3000k, 4500k, 6500k | ||
| High Light: | 200W Industrial LED Floodlights,Industrial LED Floodlight 130lm/ W,high powered led flood lights 130lm/ W |
||

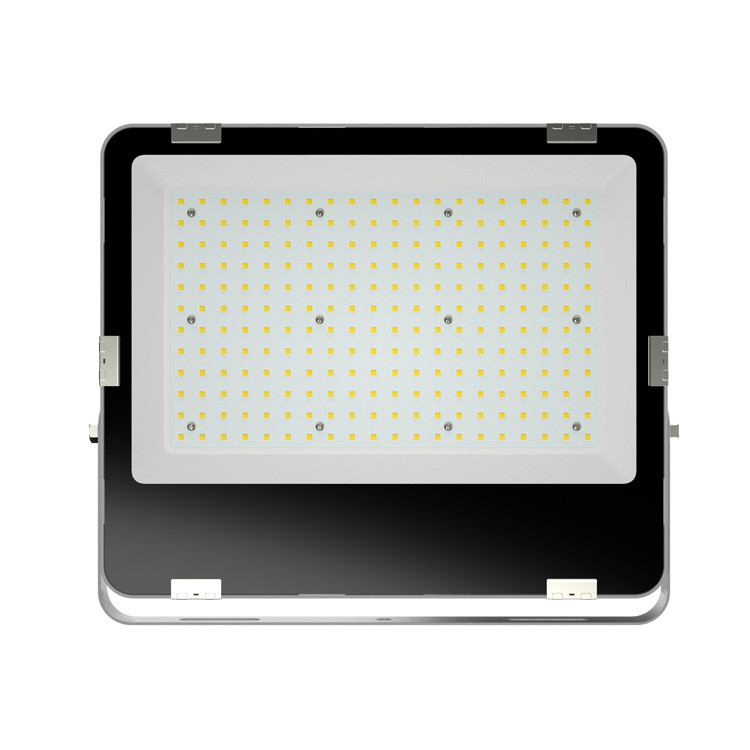

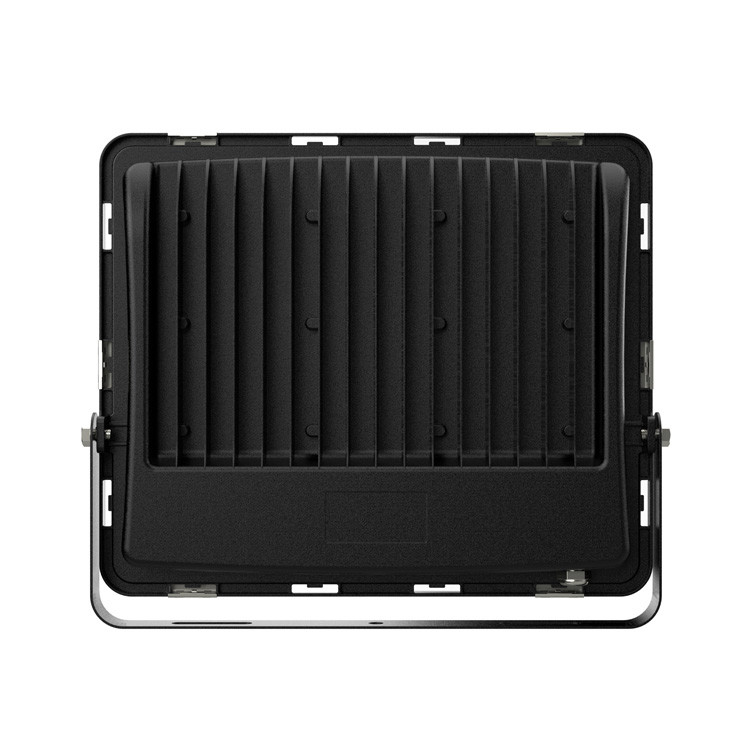

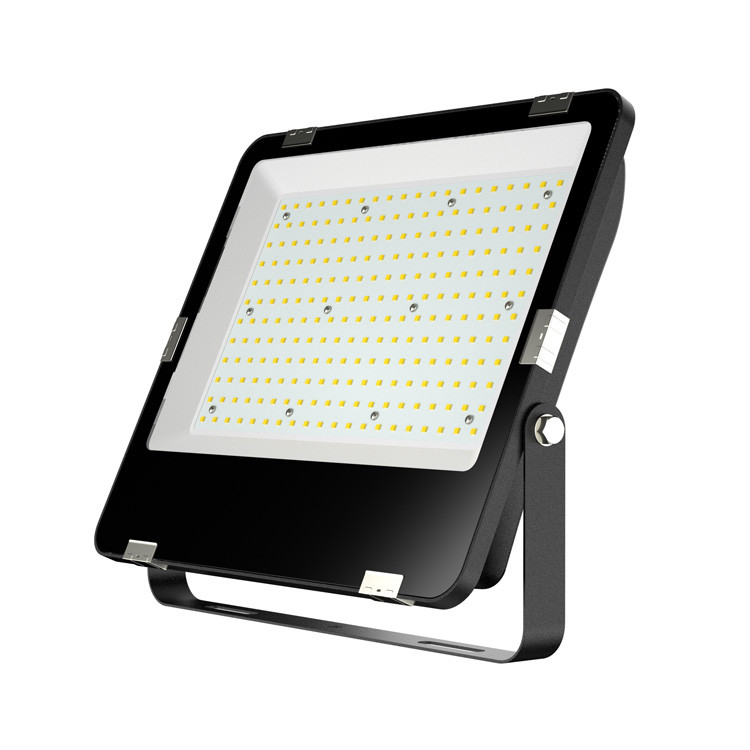

Indoor Outdoor Industrial LED Floodlight 200W High Power Lighting
Descriptions of Industrial LED Floodlight:
The model industrial LED floodlight is a simple and classical appearance for indoor and outdoor lighting. It adopts superior die-casting aluminum with anti-pressure, and anti-corrosion, and tempered glass cover is thick, press-proof, and waterproof IP66. The driver is constant-current AC solution, PF>0.9. The beam angle can be choosed between narrow angle 60 degree and wide angle 120 degree. It is widely used in stadium sport fields, hotel, gallery, road, street, parking, car warehouse etc.
We accept the customization for the different models!
Structure details of Industrial LED Floodlight:
1. Tempered glass strudy and durable.
2. Waterproof silicon ring againt rain coming in.
3. Nano-plastic reflector against the high temperature and UV, long use and never yellowing.
4. SMD3030 LED, high light efficiency and lighting to further.
5. Aluminum board with high thermal conductivity, and faster heat running.
6. High-quality and famous brand driver: Meanwell, Sosen etc.
7. ADC12 die-casting aluminum radiator, efficiency up to 96W/M.K.
8. Strong support and strong installation.
Product Parameters of Industrial LED Floodlight:
| Product Name | Outdoor Flood LED Light WS | |||
| Part No. | SU-WS30 | SU-WS50 | SU-WS100 | SU-WS200 |
| Input Voltage | AC85-265V, 50/60Hz | |||
| Rated Power | 30W | 50W | 100W | 200W |
| Light Source | Osram SMD3030 / 2835 | |||
| Light Efficiency | 130lm/W | |||
| CCT | 2700k, 3000k, 4500k, 5000k, 6500k | |||
| Product Size (mm) | L223xW181xH35 | L253xW211xH35 | L284xW241xH40 | L344xW301xH43 |
| Driver | Constant Current Isolated Driver | |||
| Body Material | ADC12 Aluminum | |||
| Cover Material | Tempered Glass | |||
| CRI | >80 | |||
| PF | >0.9 | |||
| Housing Color | Black, Grey | |||
| Surge Protection | 4KV | |||
| Beam Angle | 60° / 120° | |||
| Class Protection | IK08, IP66 | |||
| Working Temperature | -30 ~ 50 Deg. | |||
| Life Span | 50,000H | |||
Dimensions of Industrial LED Floodlight:
Product Structure of of Industrial LED Floodlight:
Optical Lens 60 and 120 degree available of Industrial LED Floodlight:
Installations of Industrial LED Floodlight:
Applications of Industrial LED Floodlight:
- Street, road, stadium, sport fields,
