Product Details:
|
| Name: | Outdoor Flood Lighting Led 200w | Light Efficiency: | 130lm/W |
|---|---|---|---|
| Surge Protection: | 6KV | Beam Angle: | 120° |
| IP Rating: | IP66 Waterproof | Usage: | Indoor Outdoor Use |
| Color: | 3000k, 4500k, 6500k | ||
| High Light: | Ce RoHS Outdoor Flood Lighting Led,120D outside flood lights,high power flood light 60D |
||
Ce Rosh Outdoor Flood Lighting Led 200w High Power Stadium with 60D or 120D
Descriptions of Outdoor Flood Lighting Led 200w:
The outdoor flood light led 200w is a latest design with simple and classical appearance for indoor and outdoor lighting. The housing material is pure die-casting aluminum with anti-pressure, high-strength, and anti-corrosion, and thick tempered glass cover, waterproof IP66. It adopts constant-current driver AC solution. It is widely used in stadium sport fields, hotel, gallery, road, street, parking, car warehouse etc.
We accept the customization for the different models!
Product Parameters of Outdoor Flood Lighting Led 200w:
| Product Name | Outdoor Flood LED Light WS | |||
| Part No. | SU-WS30 | SU-WS50 | SU-WS100 | SU-WS200 |
| Input Voltage | AC85-265V, 50/60Hz | |||
| Rated Power | 30W | 50W | 100W | 200W |
| Light Source | Osram SMD3030 / 2835 | |||
| Light Efficiency | 130lm/W | |||
| CCT | 2700k, 3000k, 4500k, 5000k, 6500k | |||
| Product Size (mm) | L223xW181xH35 | L253xW211xH35 | L284xW241xH40 | L344xW301xH43 |
| Driver | Constant Current Isolated Driver | |||
| Body Material | ADC12 Aluminum | |||
| Cover Material | Tempered Glass | |||
| CRI | >80 | |||
| PF | >0.9 | |||
| Housing Color | Black, Grey | |||
| Surge Protection | 4KV | |||
| Beam Angle | 60° / 120° | |||
| Class Protection | IK08, IP66 | |||
| Working Temperature | -30 ~ 50 Deg. | |||
| Life Span | 50,000H | |||
Dimensions of Outdoor Flood Lighting Led 200w:
Product Structure of Outdoor Flood Lighting Led 200w:
1. Tempered glass strudy and durable.
2. Waterproof silicon ring againt rain coming in.
3. Nano-plastic reflector against the high temperature and UV, long use and never yellowing.
4. SMD3030 Osram LED, high light efficiency and lighting to further.
5. Aluminum board with high thermal conductivity, and faster heat running.
6. High-quality and famous brand driver: Meanwell, Sosen etc.
7. ADC12 die-casting aluminum radiator, efficiency up to 96W/M.K.
8. Strong support and strong installation.x
Optical Lens 60 and 120 degree available of Outdoor Flood Lighting Led 200w:

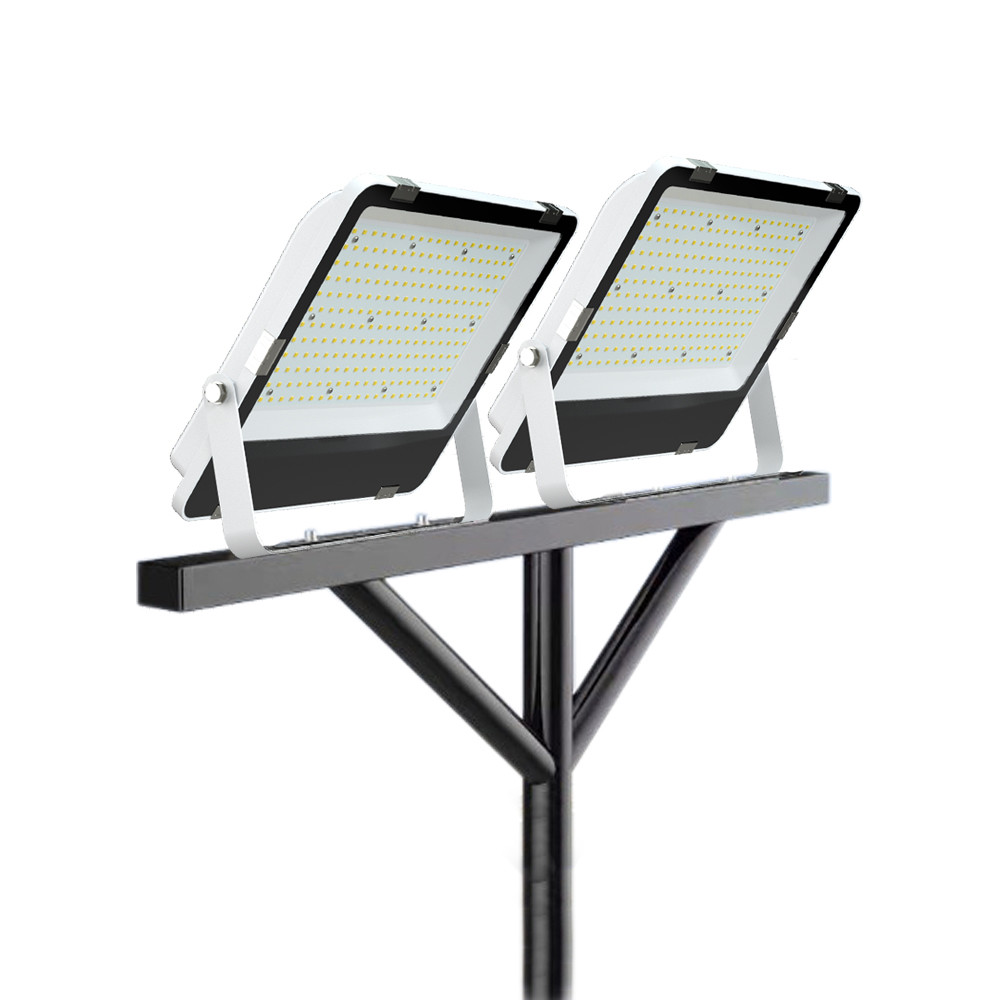

Installations of Outdoor Flood Lighting Led 200w:
Applications of Outdoor Flood Lighting Led 200w:
- Street, road, stadium, sport fields,
