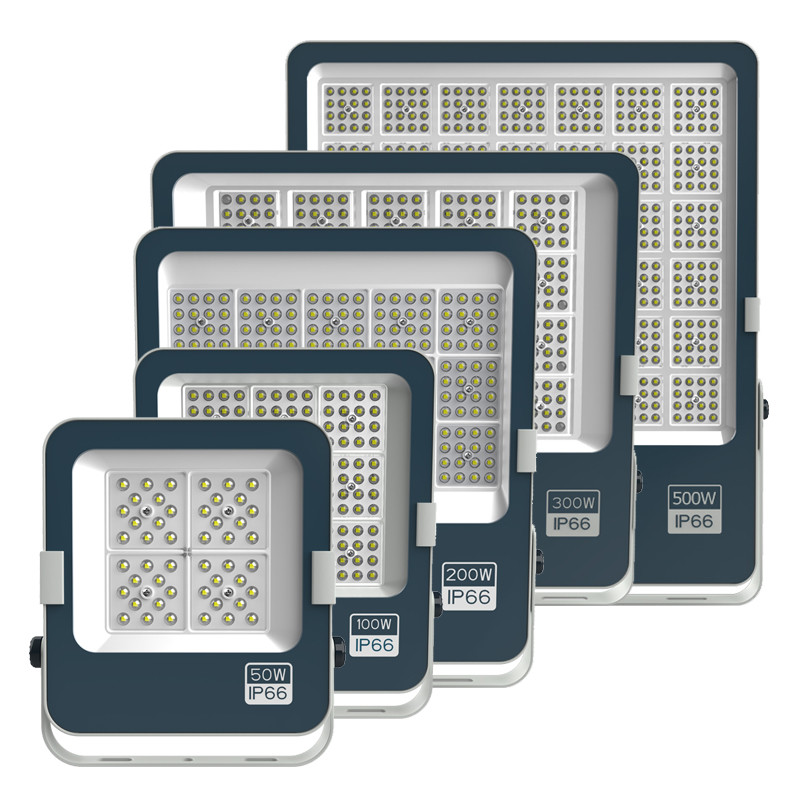

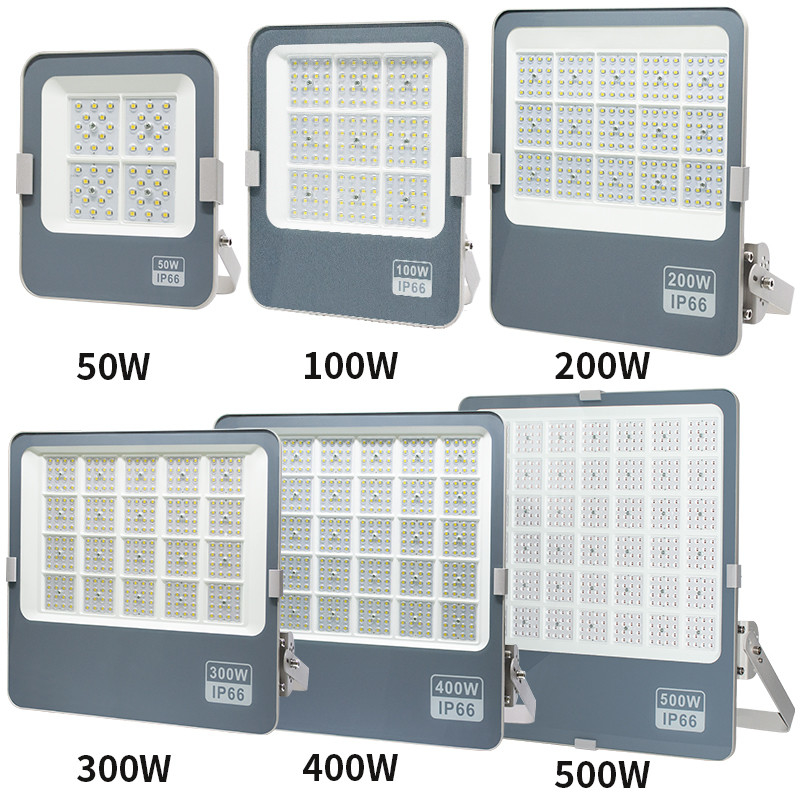

IP66 Led Flood Light 50W 100W 200W 30W 400W 500W
IP66 Led Flood Light 50W 100W 200W 30W 400W 500W IP66 Led Flood Light 50W 100W 200W 30W 400W 500W IP66 Led Flood Light 50W 100W 200W 30W 400W 500W IP66 Led Flood Light 50W 100W 200W 30W 400W 500W IP66 Led Flood Light 50W 100W 200W 30W 400W 500W
Contact Now

IP66 Led Flood Light 50W 100W 200W 30W 400W 500W

Minimum Order Quantity : 10 Price : Negotiated
Packaging Details : 2PCS/CTN Delivery Time : 3-7 working days
Payment Terms : T/T, Paypal, Western Union Supply Ability : 30000pcs/month
Place of Origin: Shenzhen, China Brand Name: SUNRISE
Certification: CE ROHS FCC Model Number: SU-TJ23-500W

Detail Information
Finished Body Color: Light-grey, Black Light Source: Lumiled SMD LED
Beam Angle: 30°, 60°, 90°, 120° (optional) Material: Aluminum
Power: 500W Driver Mode: Constant Current Driver
Application: Outdoor Stadium Flood Lighting Weight: 7.7kg
Highlight:

SMD glare free led flood light

,

100w glare free led flood light

,

Glare Free flood light 50 watt

Product Description

Product Description:

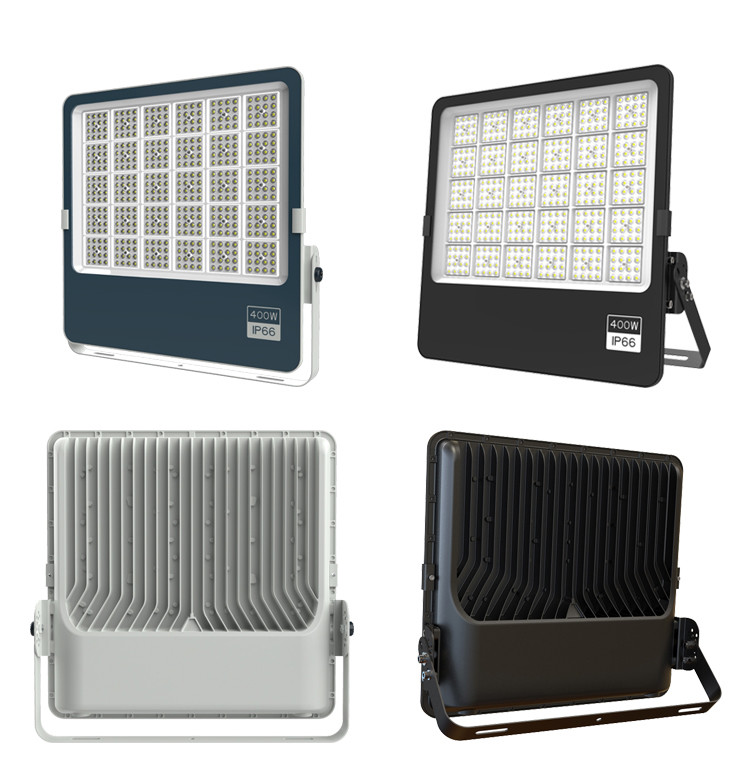

- DIECAST ALUMINUM, BETTER HEAT SINKING: High density and thick AD12 aluminum, much better heat sinking than common AL or ABS in the markets., Sunrise LED flood light is treated with graphene coating, which has better thermal conductivity and stronger weather resistance, heavy weight, efficient heat dissipation, and extended service life.



- OPTIONAL BEAM ANGLES: attaching optical lens for 30º, 60º, 90º and 120º inside, different angle with different lighting effect, applicable for different regions.



- SUPER BRIGHT & ENERGY SAVING: SUNRISE 300W 36000LM LED flood light can replace 1500W traditional incandescent light bulb, saving more than 85% of power. It adopts the most advanced patch technology and convex design to offer brighter lighting and bigger range of illumination.

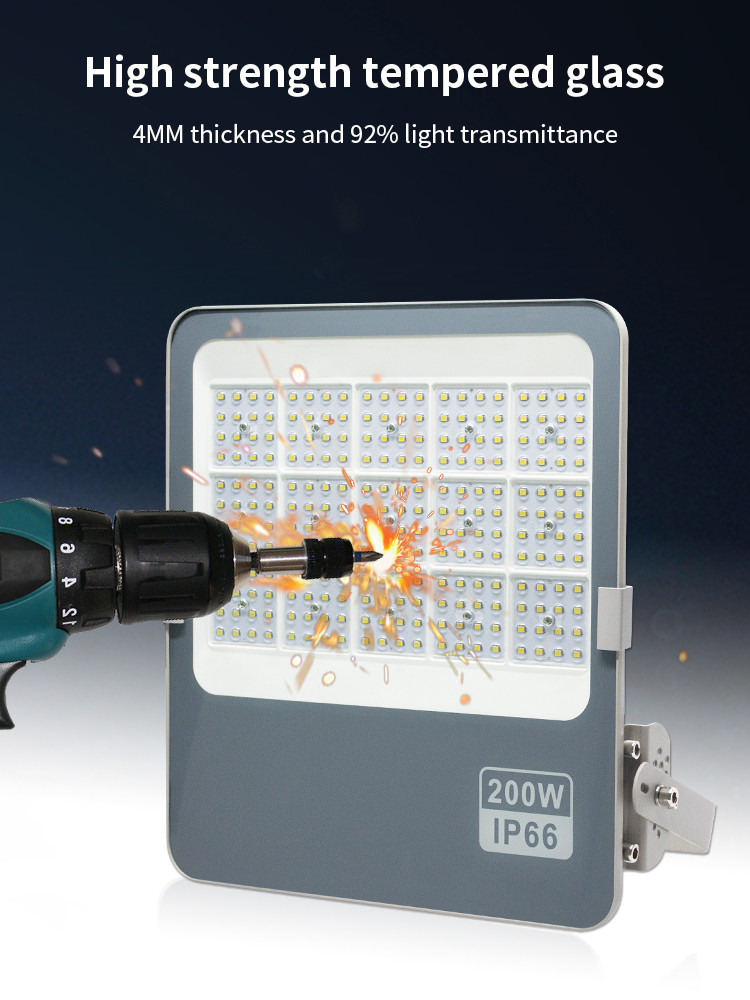

- HIGH HARDNESS GLASS: adopting 4mm high density and high hardness tempered glass, IK08 against shocking and 90% light transmission rate.

- SMART FUNCTIONS AVAILABLE: Available to have smart functions: 0-10 dimming, light control, motion sensor, photocell etc.

- HIGH LUMEN LED CHIPS: Super bright and low light dissipation famous brand SMD 2835 320 PCS LEDs as light source to meet high light luminous efficiency 110-120lm/W. Higher light efficiency is available.

- CONSTANT CURRENT DRIVER: High accurate constant current waterproof driver with stable performance and circuit protection, able to meet power factor 0.9, perfectly meeting full load power consumption. Moreover, brand drivers are available.

- WIDE APPLICATIONS: The flood lights can be applicable for many applications such as street, road, stadium sport fields, tennis court, gymnasium, football, soccer, baseball, volleyball, airports, harbors, squares, docks, plaza, wharf, warehouse, workshop, buidling outline, bridge, sculpture back light etc.


Technical Parameters:



Part No. SU-TJ23-500W
Wolk Voltage AC85-265V
Frequency 50/60Hz
Rated Power 500W
Net Weight 7.20 KG
Dimension: L560*W485*H60mm
Light Source SMD2835
CCT 3000K, 4000K, 5000K, 6000K or custom
Driver Way Constant current, separate driver (Richmat, ZH power, Surcon, DONE)
Material Die- cast aluminum + tempered glass
Casing Color Grey / Black
Beam Angle 60°, 90°, 120° (optional)
CRI >70 / 80 / 90Ra
PF >0.95
SPD L/N - PE: 6KV. L/N: 6KV

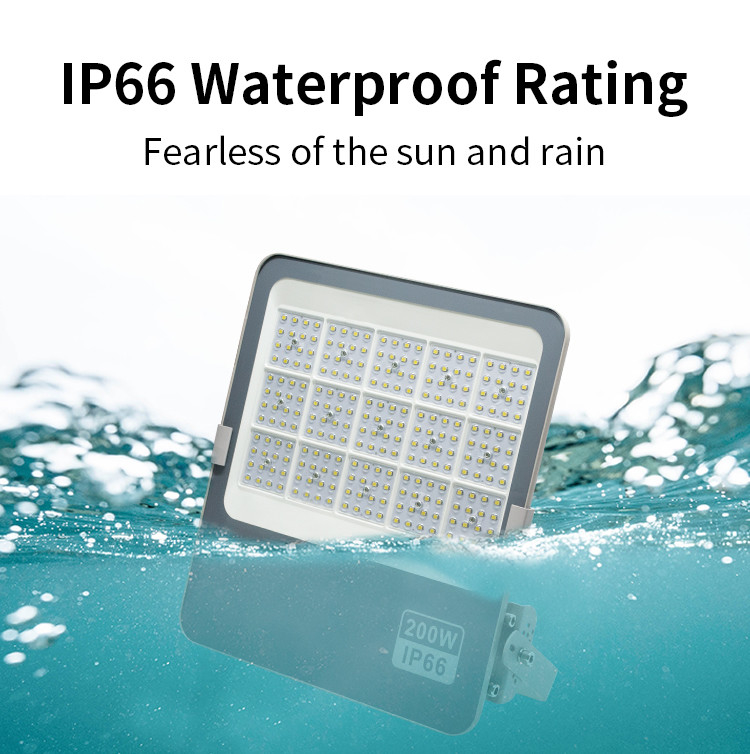

Protection Grade IP66 / IK08
SDCM <5%
THD <15%
Warranty 3 Years
Work Hudity 10% - 90%
Work Temperature -30°C ~ 50°C
Storage Temperature -40°C ~ 60°C



IP66 Led Flood Light 50W 100W 200W 30W 400W 500W
