Product Details:
|
| Name: | Flood Reflector 50w 100w 150w 200w 300w | Usge: | Street, Tunnel, Mineral Estate |
|---|---|---|---|
| Housing Color: | Black, White | Efficiency: | 90lm/W (Real Test) |
| Feature: | High Illumination, Low Cost, | Body Material: | Aluminum |
| IP Rating: | IP66 Waterproof | Light Source: | SMD2835 Imported Chip |
| High Light: | IP66 50w 120lm/ W LED Tunnel Lights,IP66 Flood light Reflector 150w 120lm/ W,IP66 120lm/ W Flood light Reflector 150w |
||

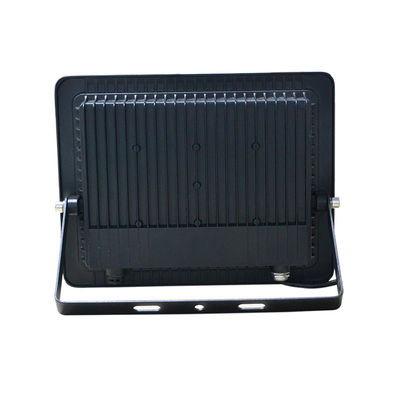

Shen Zhen Flood Reflector 50w 100w 150w 200w 300w LED Waterproof IP66
Characteristics of Flood Reflector 50w 100w 150w 200w 300w:
• Model Numner: SU-CB100T.
• Work voltage: AC100-130V, AC200-240V, 50/60Hz.
• Lumen efficiency: 85-90lm/W (real lumen)
• Power consumption: 150W ±10%.
• Adopting SMD2835 super bright LED chips 100lm/W.
• The light can be saving 95% comparing to traditional lamps.
• CE, ROHS approved.
• Warranty is 2 years.
• Able to make microwave sensor, motion sensor, daylight / photocell sensor etc..
• LED junction temperature less than 40 degree.
• High light transmission up to 95%.
• Easy installation and maintenance, quality guaranteed.
• Waterproof IP66 design for indoor and outdoor landscape lighting.
Descriptions of Flood Reflector 50w 100w 150w 200w 300w:
The outdoor LED lamp is slim simple appearance with classical design. It adopts thickened die-casting aluminum as the housing material for better heat sinking, and with features of anti-thunder, rain-proof, explosion-proof and anti-corission. Its cover is 4mm empered glass, high hardness and not fragile on transportation. The radiator is striped type with fast heat dissipation. It adopts linear working AC solution, keeping good-working and stable.
It is widely used for residential lighting like stair, door, shop, walkway, gateway, yard etc.
Product Specs of Flood Reflector 50w 100w 150w 200w 300w:
| Name | Flood Reflector 50w 100w 150w 200w 300w | ||
| Product Model | SU-CB100T | SU-CB150T | SU-CB200T |
| Rated Power | 100 Watts | 150 Watts | 200 Watts |
| Available Wattages | 10W, 20W, 30W, 50W, 100W, 150W, 200W, 300W | ||
| Product size (mm) | L270*W210*H30 | L330*W230*H33 | L380*W280*H35 |
| Input voltage | 100-130V, 220-240V AC, 50/60Hz | ||
| Light source | SMD 2835 LEDs | ||
| Driver | Driverless working solution | ||
| Luminous flux | 85-90m/W | ||
| Color temperature | Warm White 3000K-3200K | ||
| White / Daylight white 4000K-4500K | |||
| Pure White 6000K-6500K | |||
| Material | Die-casting aluminum + tempered glass | ||
| Surging protection | 2KV | 4KV | |
| Anti-shock level | IK08 | ||
| Waterproof protection | IP66 Waterproof | ||
| Cable | 3x0.75m² PVC cable | ||
| Housing color | White, Black | ||
| CRI | >70Ra | ||
| PF | >0.9 | ||
| Beam angle | 120 degree | ||
| Work temperature | ~20 - +50 Degree | ||
| Lifespan | 30,000H | ||
Product Details of Flood Reflector 50w 100w 150w 200w 300w:
Different Aluminium Comparision for Flood Reflector 50w 100w 150w 200w 300w:
- We only use die-casting aluminium material.
Installation steps of Flood Reflector 50w 100w 150w 200w 300w:
Package of Flood Reflector 50w 100w 150w 200w 300w:
Frequent Asked Questions of Flood Reflector 50w 100w 150w 200w 300w:
1. What is the MOQ?
SUNRISE: The MOQ is 100pieces. Sample is available and we can make a deal via Alibaba. Mixed samples order is welcome.
2. Does the Flood Reflector include any driver inside?
SUNRISE: This model doesn't include driver inside. It is linear AC solution. If you only want it with driver, we can recommend you another.
3. Is there any other body color for this Flood Reflector?
SUNRISE: It can have white or black body.
4. Can this Flood Reflector be dimmable?
SUNRISE: It can't be dimmable, but we have another types with dimmable functions.
5. How can you guarantee quality?
SUNRISE: All raw materials must be checked before stocking and finished products must have been tested and aged. Finally packed. If unfornately any fault happend, we will replace. The warranty is 2 years.
6. How to ship the goods?
SUNRISE: We usually ship by sea, by air or by express such as DHL, UPS, FedEx, TNT or special line. Your forwarder is also welcome. Trying to get the lowest cost for you.
7. What is the leadtime?
SUNRISE: It usually takes 10-15 days <500pcs. >500pcs the leadtime is 18-25 days.
8. Can I have my brand or logo on the products?
SUNRISE: Yes, we have professional designing team to finish your requests.
